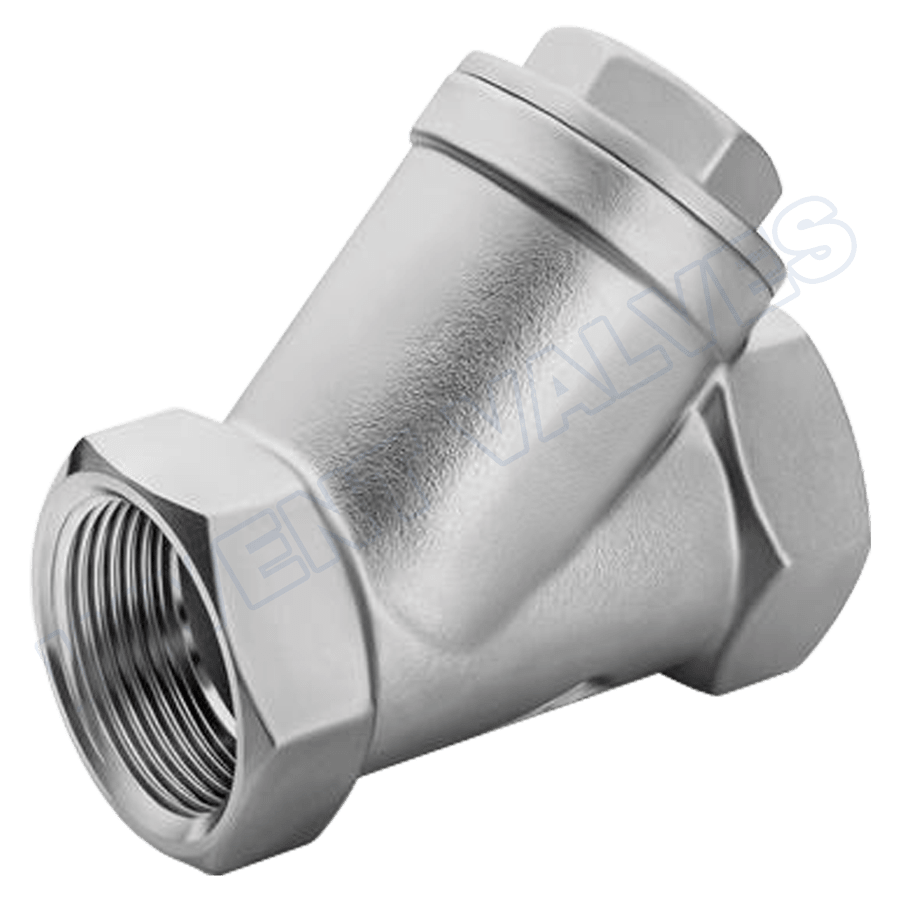

Investment Casting Y Type Strainer [Screwed, Socket Weld]

Investment Casting strainers derive its name from the shape of its configuration that looks like “Y”. It is very useful when it comes to protecting pumps and compressors because the dirt or debris present in the latter is collected in the strainer without bargaining with the pressure drops. The Y type strainers are most suitable for horizontal and vertical pipelines where the debris is difficult to be removed from the liquid or gas. Found in thousands of pipelines, this strainer is the most economic and common for permanent use.

Investment Casting Y Type Strainers are one of the most common strainers present in the pipelines to handle small particles of dust. It is suitable for removing the debris away from the pipeline in a systematic manner without causing any harm to the pipeline. As the name highlights, Investment Casting Y Type strainers are basically made up of cast steel. Apart from it, stainless steel or alloy steel acts as the alternative for each other on several occasions. When it comes to dimensions of Investment Casting Y Type strainers, its screwed ends/socket weld ends is 1/4 inch to 2 inches. Therefore, it has a compact size that can fit various types of pipelines comfortably. Pressure rating of Cast Y Type strainers is 150#. INVENT Strainers are Sturdy Have Filtration area more than 3times, wall thickness which is as per ANSI B 16.34 an the ease of installation it renders due to compact size and design, for more information contact us right now.

Size: ¼”- 2” ( Screwed, Socket weld)
